NITTO Couplers

NITTO claims to be the world’s leading manufacturer with 3000 series of couplers. But, if you have a special application, Air Energy can advise the best solution. The original standard NITTO CUPLA is the world’s most successful and copied design. You can contact our expert to discuss it in detail.

HI-CUPLA Standard NITTO

Product Specifications:

• Body Material – Chrome-plated steel, brass, SS
• Size – 1/4”, 3/8”, 1/2”, 1/2” (large), 3/4”, 1”
• Working pressure – 215 psi, 1.5 MPa (15 kg/cm²)
• Maximum Pressure – 285 psi, 2.0 MPa (20 kg/cm²)
• Seal Material – NBR (Nitrile butadiene rubber)
• Working Temperature – 20°C to 80°C

With excellent durability and application characteristics, it handles a wide range of tasks. A high-quality air coupler with a long-proven history of service.

• One-way automatic shut-off in the socket.
• Wide variety of sizes gives best choice suited to application.
• Hardened important parts are extremely wear resistant and durable.
• Tested 100,000 times; coupler connection is accurate and reliable.

Note :

• The 20, 30 & 40 sizes are interchangeable with each other.
• Standard is Chrome plated steel; brass or stainless steel are special order, add –B or –SS after Part No.
• The 20PFF parallel thread has a captive O-ring seal and is specifically designed for use on spray guns.
• The 400,600 &800 sizes are interchangeable with each other.

HI – CUPLA 200 NTTO

Product Specifications:

• Body Material – Chrome-plated steel
• Size – 1/4”, 3/8”, 1/2”
• Working pressure – 145 psi, 1.0 MPa (10 kg/cm²)
• Maximum Pressure – 215 psi, 1.5 MPa (15 kg/cm²)
• Seal Material NBR – (Nitrile butadiene rubber)
• Working Temperature – -5°C to +60°C

Features:

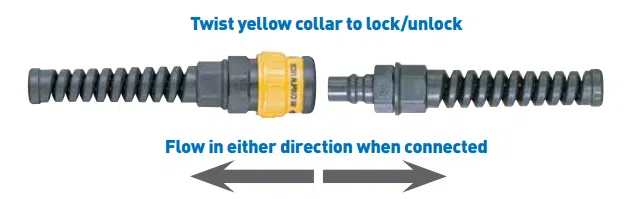

• One-Touch Connection –Improved handling and operation. Simply push the plug into the socket, no ring to manually slide back. A secure connection is made. Easy to connect/disconnect in narrow or confined places. Quick connection saves time and improves efficiency.
• Large Flow Rate – Adopted with a valve design that allows greater fluid flow.
• Free Swivelling – Eliminates hose kinking.
• Hardened – Important parts are extremely wear-resistant and durable.

NUT CUPLA NITTO

Product Specifications:

• Body Material – Chrome-plated steel, brass
• Size – To suit urethane hose.
• Working pressure – 145 psi, 1.0 MPa (10 kg/cm²)
• Maximum Pressure – 215 psi, 1.5 MPa (15 kg/cm²)
• Seal Material – NBR (Nitrile butadiene rubber)
• Working Temperature – -5°C to +60°C

All the features of the 200 series:

• One touch connection for ease of use and improved efficiency
• Low pressure loss valve gives higher flow rates.
• Option of spring nut to prevent hose kinking.

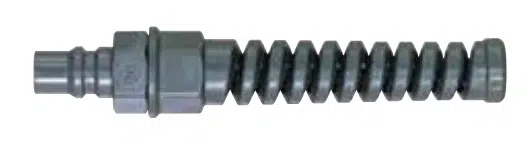

PN plug x polyurethane hose

Model	Size
50PN	Ø 8 x 5 mm
65PN	Ø 10 x 6.5 mm
85PN	Ø 12.5 x 8.5mm
110PN	Ø 16 x 11 mm
65PNG	Ø 10 x 6.5 mm
85PNG	Ø 12.5 x 8.5 mm

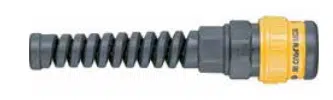

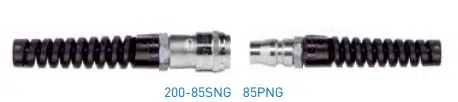

200-SN socket x polyurethane hose

Model	Size
200-50SN	Ø 8 x 5 mm
200-65SN	Ø 10 x 6.5 mm
200-85SN	Ø 12.5 x 8.5mm
200-110SN	Ø 16 x 11 mm
200-65SNG	Ø 10 x 6.5 mm
200-85SNG	Ø 12.5 x 8.5 mm

SAFETY LOCK CUPLA NITTO

Product Specifications:

• Body Material – Chrome plated steel
• Size – 1/4”, 3/8”, 1/2”, urethane hose 8 x 5 mm. 10 x 6.5 mm, 12.5 x 8.5 mm
• Working Pressure – 145 psi, 1.0 MPa (10 kg/cm²)
• Maximum Pressure – 215 psi, 1.5 MPa (15 kg/cm²)
• Seal Material – NBR (Nitrile butadiene rubber)
• Working Temperature – -5°C to +60°C

Features:

• Lock mechanism for safety.
• Lock mechanism prevents unexpected disconnection for greater WHS peace of mind.
• One handed push connection for ease of handling and improved workplace efficiency.
• Ball bearing type swivel mechanism reduces operator effort and prevents hose twisting (SNRG model).

SAFETY PURGE PLUG NITTO

Product Specifications:

• Body Material – Chrome plated steel
• Size – 1/4”, 3/8”, 1/2” hose
• Working pressure – 145 psi, 1.0 MPa (10 kg/cm²)
• Maximum Pressure – 215 psi, 1.5 MPa (15 kg/cm²)
• Seal Material – NBR (Nitrile butadiene rubber)
• Working Temperature – -5°C to +60°C

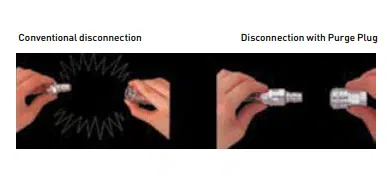

Purge mechanism for releasing stored pressure in hoses – anti whip protection.

• Any remaining pressurised air inside a hose is gradually released on disconnection of the coupler.
• Protects against excessive noise danger.
• Protects from whip lash effect from sudden discharge of stored pressure.
• Original simple purge structure is very durable.
• Can be used with reliability even with high pressures or long lengths of hose.

SAFETY HI CUPLA ACE NITTO

Product Specifications:

• Body Material – Engineering plastics—PBT, POM
• Size – 1/4”, 3/8” hose plugs & sockets 1/4”, 3/8” Male BSP plugs & sockets 8 x 5, 10 x 6.5, 12.5 x 8.5 mm urethane hose plugs & sockets.
• Working pressure – 215psi, 1.5 MPa (15 kg/cm²)
• Maximum Pressure – 285 psi, 2.0 MPa (20 kg/cm²)
• Flow rate – 2.93m³/min (103 cfm)
• Seal Material – NBR (Nitrile butadiene rubber)
• Working Temperature – -5°C to +60°C

NOTE: Not suitable for vacuum

Features:

• Plastic cuplas with built-in locking mechanism
• Pressure ratings similar to steel cuplas.
• Made from engineering grade plastics with excellent strength and impact resistance.
• Due to the lightweight plastic body, there is little risk of damage from accidental contact in for example an automobile workshop.
• The built-in locking sleeve prevents accidental disconnection.
• Simple one-touch operation.
• Bi-directional fluid flow compatible
• Suitable for compressed air, water and inert gases
• Interchangeable with all the Nitto Hi-Cupla range

PVR CUPLA NITTO

Product Specifications:

• Body Material – Zinc Diecast brass, other
• Size – 1/2”, 3/4”, 1” sockets Male, Female and hose
• Working pressure – 215psi, 1.5 MPa (15 kg/cm²)
• Maximum Pressure 285 psi, 2.0 MPa (20 kg/cm²)
• Seal Material – NBR (Nitrile butadiene rubber)
• Working Temperature – -20°C to +60°C

Features:

The PVR Cupla is designed to provide a top quality cupla for large-diameter hoses with a purge function. It eliminates stored energy in larger 1/2”, 3/4” and 1” hoses, and has a sleeve lock for safe WHS operation.

• Easy connection and regardless of existing pressure
• Disconnection with no residual pressure reduces sound hazards and eliminates hose whiplash.
• Easy one-hand operation.
• Incorporates purge function for safety.
• Integral sleeve lock mechanism prevents accidental disconnection.
• Full flow valve system gives increased flow rate—about 20% more than the equivalent 400 SM.

SUPER CUPLA NITTO

Product Specifications:

• Body Material – Chrome plated steel, Aluminium, Nickel plated brass
• Size – 1/8”, 1/4” Male, Female, hose, polyurethane, and push-in tubing
• Working pressure -145psi, 1.0 MPa (10 kg/cm²)
• Maximum Pressure – 215 psi, 1.5 MPa (15 kg/cm²)
• Seal Material – NBR (Nitrile butadiene rubber) Optional FKM for higher temp
• Working Temperature – -20°C to +80°C

Note: Not suitable for vacuum.

Features:

We can offer a huge range of specialist couplers, too many to list here, but the Super coupler is a very good model in the mini sized series.

• Lightweight design, partly aluminium construction.
• Easy one-hand one-touch operation
• Suitable for flow in both directions when connected.

Contact Us

For more information on our product and installation service, call us on (03) 9765 5600. You can also fill our online contact us form to discuss about your requirements.
