Hose Tubing
There are many similarities between hose and tubing, but the most common perception is that hoses are generally larger in diameter compared to tubing. Most hose tube is in the range 4mm to 16mm, whereas hose tends to be in imperial sizes from 1/4″, 3/8″, 1/2″, 3/4″ up tp 3″ or even 4″. obviously, there are exceptions, but our staff can usually solve most requirements.
Some Great Benefits of Hose Tubing
At Air Energy, we stock a variety of tubes and hose.
Hose Tubing and Accessories
Air Energy is a reliable supplier of hose tubing accessories across Australia. We offer a wide range of high-quality tubing hose pipes to meet diverse industrial needs. With a strong focus on customer satisfaction and reliability, Air Energy ensures that our stocked hose tubing accessories are of superior quality and sourced from trusted manufacturers.
Our extensive inventory caters to various applications and industries, from polyethylene hose tubing to flexible tubing hose and air hose tubing. Our hose tubing accessories are available across Australia, including Adelaide, Brisbane, Melbourne, Perth, and Sydney.
Nylon Tubing
Nylon 12 tubing has become the go-to choice in various industries that require handling higher pressure or heat. Its exceptional characteristics, including strength, lightweight nature, flexibility, and chemical resistance, make it highly sought after. The tubing’s semi-rigid properties make it possible to achieve higher flow rates and working pressure with a thinner wall. This material adheres to Australian Standards, ensuring its reliability and performance. It boasts a minimum burst pressure of 1000psi/6.9 MPa and a working pressure of 250psi/1.7 MPa, providing a 4:1 safety factor. A 3:1 safety factor can be applied for fluid transfer applications, further enhancing its safety and efficiency.
Nylon Tubing Metric
| Part No. | O.D. | I.D. | Working Pressure |
|---|---|---|---|
| TN04 | 4mm | 2.5mm | 250 psi/17 bar |
| TN05 | 5mm | 3mm | 250 psi/17 bar |
| TN06 | 6mm | 4mm | 250 psi/17 bar |
| TN08 | 8mm | 6mm | 250 psi/17 bar |
| TN10 | 10mm | 7.5mm | 250 psi/17 bar |
| TN12 | 12mm | 9mm | 250 psi/17 bar |
| TN16 | 16mm | 13mm | 250 psi/17 bar |
Nylon Tubing Imperial
| Colour | Code |
|---|---|
| Natural (clear) | -CL |
| Black | -BK |
| Green | -G |
| Yellow | -Y |
| White | -W |
| Blue | -BL |
| Red | -R |
| Hardness | Rockwell 78R |
| Shore D 70 | |
| Temperature | -60°C to 200°C |
| Vacuum | 28" Hg |
Polyethylene Tubing
Low-density polyethylene (LDPE) tubing is manufactured using 100% non-toxic components. Its inert properties and adherence to FDA regulations make it an excellent choice for piping applications in the food, water, and beverage industries. However, it is essential to note that LDPE tubing is best suited for areas where heat exposure is minimal and direct sunlight can be avoided. This versatile material is widely preferred for various purposes such as pneumatics, drain piping, laboratory use, and chemical transfer. LDPE tubing offers a cost-effective solution without compromising on safety and quality.
Polyethylene Tubing Metric
Polyethylene Tubing Imperial
| Part No. | O.D. | I.D. | Working Pressure |
|---|---|---|---|
| TE1/4 | 1/4" | .170 inch | 120 psi/8 bar |
| TE3/8 | 3/8" | .250 inch | 120 psi/8 bar |
| TE1/2 | 1/2" | .375 inch | 120 psi/8 bar |

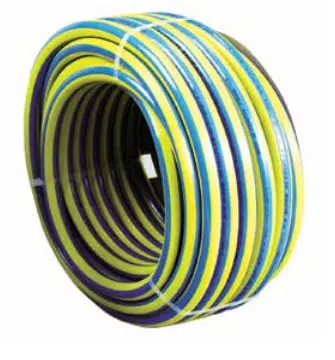

PVC Hose
We exclusively stock PVC hoses of superior quality. While lower-priced hoses may be available in the market, they often contain PVC resin with a high proportion of inexpensive and ineffective fillers or may lack proper reinforcement. These cheaper brands become stiff, brittle, and prone to punctures or blowouts. Through experience, it has become evident that opting for the cheapest option is often not a wise investment. Therefore, we prioritise offering reliable PVC hoses that ensure durability and longevity, providing our customers with a cost-effective solution in the long run.
High Quality PVC 250Psi Working Pressure, Good Flexibility And Kink Resistance
| Code | PVC | Size |
|---|---|---|
| AHB6 | Blue | 6mm x 20m |
| AHB8 | Blue | 8mm x 20m |
| AHB10 | Blue/Yellow | 10mm x 20m, 100m |
| AHB12 | Blue/Yellow | 12mm x 20m, 100m |
| AHB20 | Blue/Yellow | 20mm x 20m |
| AHB25 | Blue/Yellow | 25mm x 20m |
Breathing Air Safety Yellow

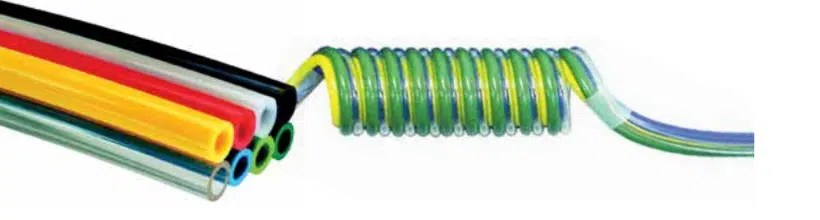

Multibore Polyurethane
Our Polyurethane spiral hoses are crafted using top-quality 100% virgin materials. It ensures exceptional performance and longevity. These hoses are available in both single-core and multicore configurations, suitable for straight hose applications or coiling. We offer a wide range of vibrant colours to choose from, allowing for customisation based on individual preferences or specific requirements.
For multi-coil hoses, the standard colour combinations include:
- 2 core: Black/light blue
- 3 core: Black/light blue/yellow
- 4 core: Black/light blue/yellow/white
In addition to the standard options, we also provide custom combinations as special builds to accommodate unique needs. It includes the availability of an electrical polyurethane-coated 5-conductor 22-gauge wire catering to specific electrical applications. Our diverse selection and flexibility in customisation allow us to meet the varied demands of our customers. We ensure that the high standards of our polyurethane spiral hoses are maintained.
FAQs
What Is the Difference Between Tubes, Pipes and Hoses?
Even though the terms are frequently used interchangeably, there are differences between tubes, pipes, and hoses. There are three major differences between hoses, tubes, and pipes:
- Standards and applications
- For plastic hoses or tubes, hoses tend to describe the larger diameter products, and tubes are more for pneumatics or workstations.
- Material composition and manufacturing procedure
