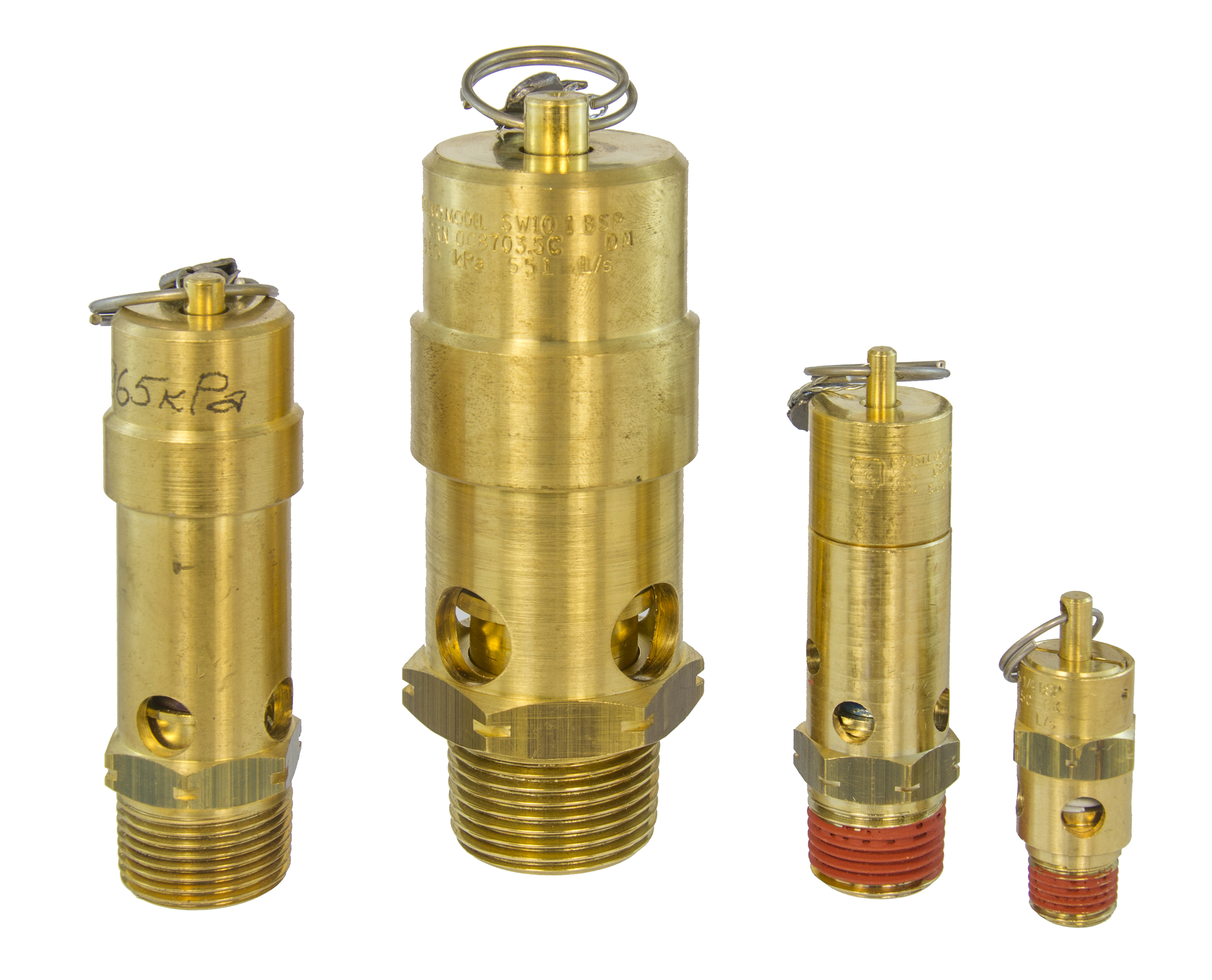

Pressure safety valve

Pressure safety valve
compact size high flow
SS spring on 3/4" & 1" sizes
Zinc plated piano wire spring on 1/4" & 3/8" sizes
O ring seal
set pressure tolerance ±3%
120°C max

SKU: Pressure safety valve

Size	Code	QTY
Pressure safety valve 1/4" 965 kpa	PSV08-965
Pressure safety valve 1/4" 1035 kpa	PSV08-1035
Pressure safety valve 1/4" 1100 kpa	PSV08-1100
Pressure safety valve 1/2" 965 kpa	PSV15-965
Pressure safety valve 1/2" 1035 kpa	PSV15-1035
Pressure safety valve 1/2" 1135 kpa	PSV15-1135
Pressure safety valve 1/2" 1200 kpa	PSV15-1200
Pressure safety valve 1/2" 1380 kpa	PSV15-1380
Pressure safety valve 3/4" 860 kpa	PSV20-860
Pressure safety valve 3/4" 1035 kpa	PSV20-1035
Pressure safety valve 1" 965 kpa	PSV25-965
Pressure safety valve 1" 1035 kpa	PSV25-1035

View Cart

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pressure safety valve
compact size high flow
SS spring on 3/4" & 1" sizes
Zinc plated piano wire spring on 1/4" & 3/8" sizes
O ring seal
set pressure tolerance ±3%
120°C max

More Information
Short Description	Pressure safety valve
